Description
Réf machine : PR 717

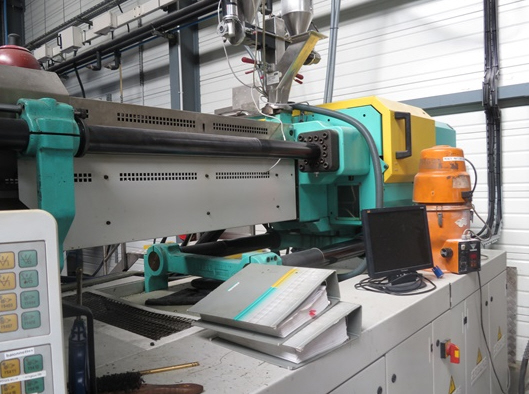

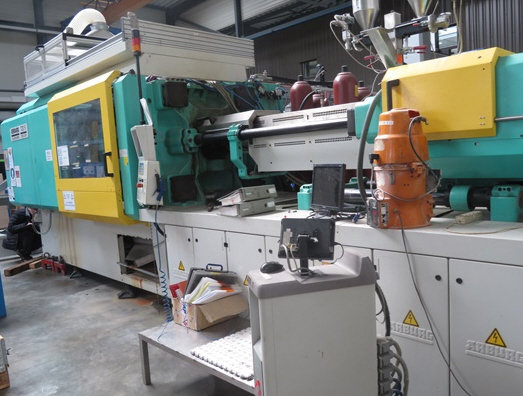

Machine: ARBURG 320T
Type : 720S-3200-2100
Année / Year : 10/2006

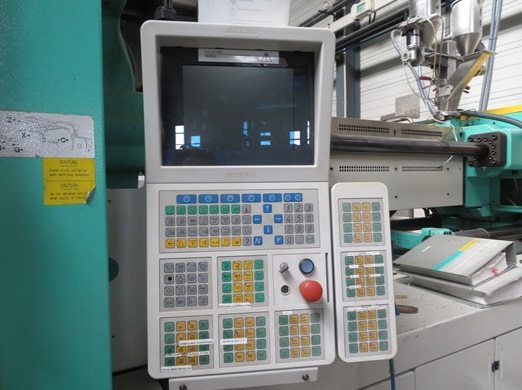

Commande / Interface: Selogica
Nombre de noyaux / Core pulling : 3
Interface robot : oui / yes
Soufflettes / Air circuit : 2
Diamètre de vis / Screw diameter mm : 60
Volume injectable/ Shot volume cm3 : 792
Poids injectable/ Shot Weight gr : 723
Pression d’injection / Injection Pressure bar : 2500
Passage entre colonne / Distance Between tie bar mm : 720 x 720
Dimensions des Plateaux /Platen sizes mm : 1040 x 1040
Course d’ouverture / Opening Stroke mm : 700
Epaisseur moule / Mould Height Mini-maxi mm : 300- 700

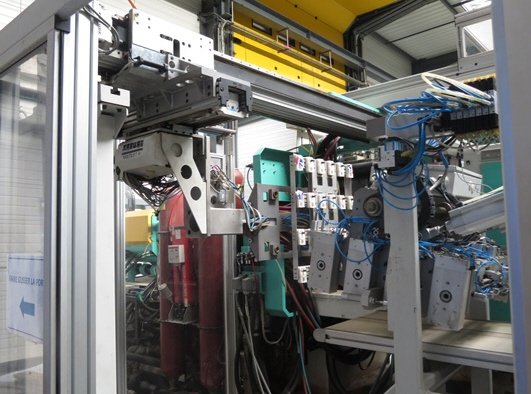

Compris robot ARBURG / Included ARBURG Robot: Multilift H
Dimensions / Dimensions Lx l x h mm : 8000 x 2400x2500
Poids / Weight kg :19500
